ZK-F22/ID WIFI Fingerprint+ID, Access Controller With Time Attendance

Description

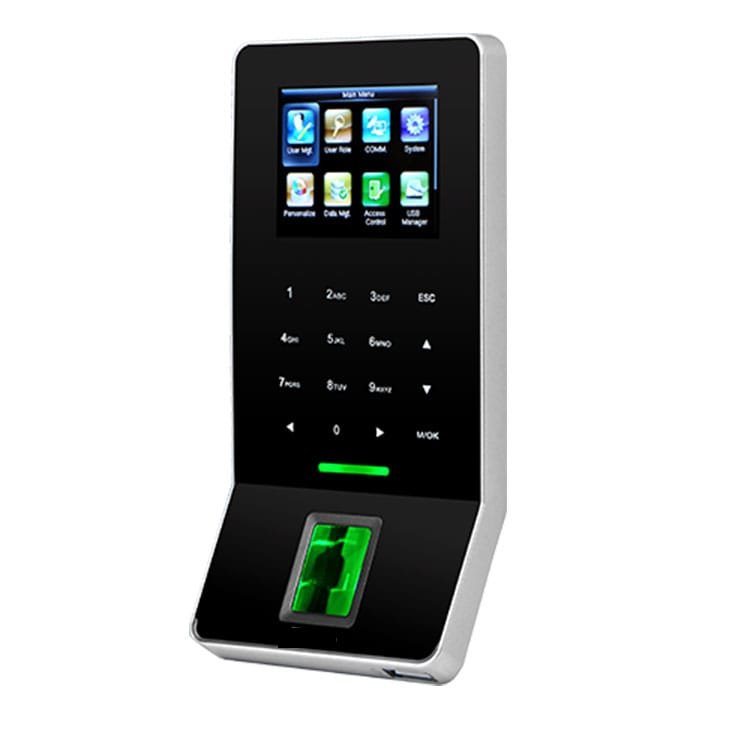

F22 is an ultra-thin fingerprint time attendance and access control
terminal with BioID sensor and Wi-Fi, which offers unparalleled
performance with advanced algorithm for reliability, precision and
excellent matching speed. F22 features the fastest commercial-based
fingerprint matching algorithm and ZKTeco high-performance, highimage
quality infrared detection fingerprint sensor.
F22 provides a superior touching experience with touch keypad, and
offers flexibility for standalone installation or with any third-party access
control panel that supports standard Wiegand signal. TCP/IP, RS485 and
Wi-Fi are also available that the device can be used in different networks.
Features
• 2.4-inch TFT color screen and Touch keys
• Ultra thin and elegant design
• Full Access Control Features:
Anti-passback, access control interface
for 3rd party electric lock, door sensor,
exit button, alarm
• Standard Wi-Fi
• Network interface by TCP/IP or RS485
• Built-in auxiliary input with enhanced
flexibility to link with wired detector or
emergency switch
• Multiple Verification Modes: Multi-verification
methods (card is optional)
providing user various choices
Specifications
Display 2.4-inch TFT LCD Color Screen
Fingerprint Capacity 3000
Card Capacity 5000(Optional) ID or IC Card
Transaction Capacity 30,000
Sensor BioID Sensor/ SilkID Sensor (optional)
Algorithm Version ZKFinger VX10.0
Communication RS232/485, TCP/IP, USB-host,Wi-Fi
Access Control Interface 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm
Wiegand Signal Input, Output
Aux. Input 1ea for linkage function
Functions DST, Automatic Status Switch, Record query, T9 input, 14 digit user ID,
Anti-passback, Scheduled-Bell, ADMS(Optional)
Power Supply 12V DC,3A
Operating Temperature 0 °C- 45 °C
Operating Humidity 20%-80%
Dimension(LxWxH) 158.5×78.0x19.4mm
