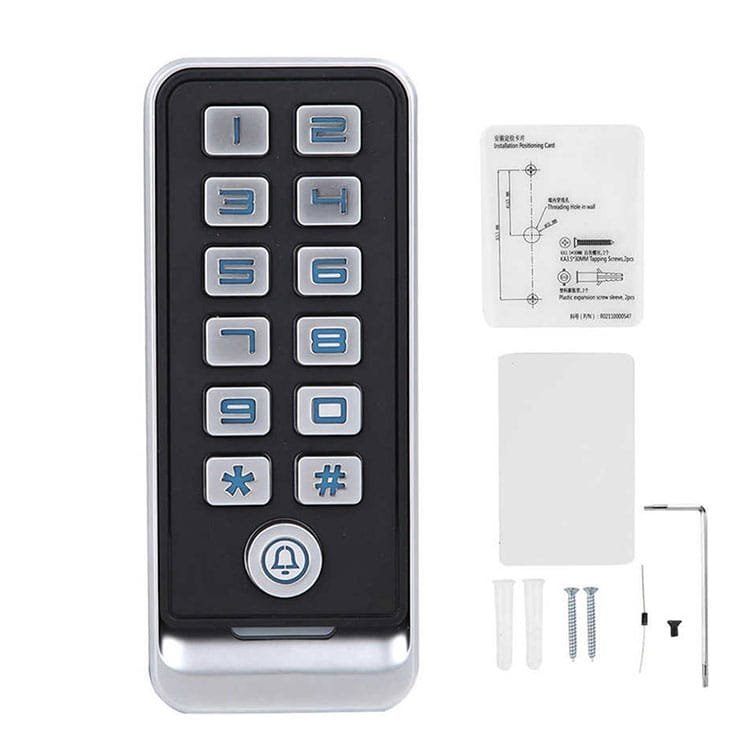

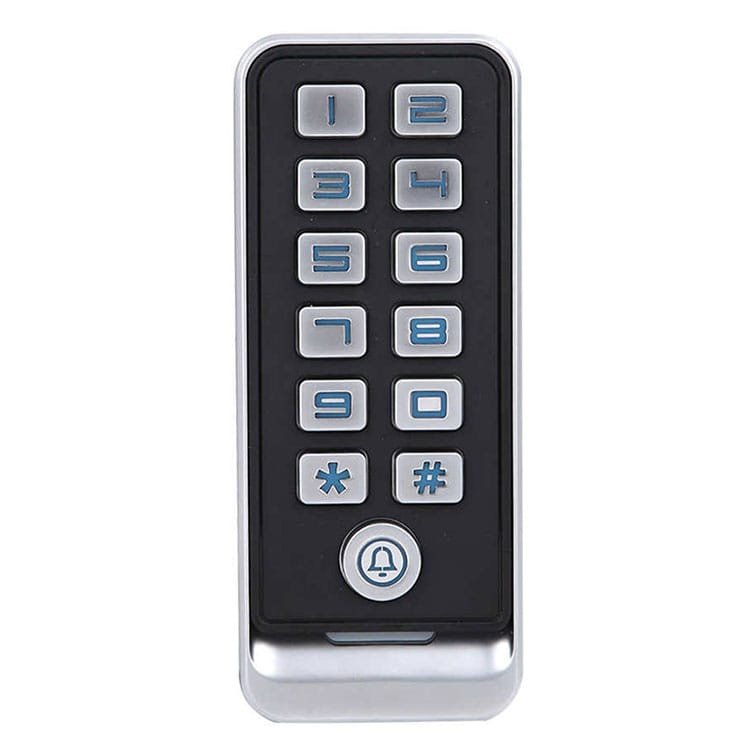

RT376 Stand Alone Access Control

Description

Overview
Support Wiegand output；
Support to store 5000 users，high capacity；

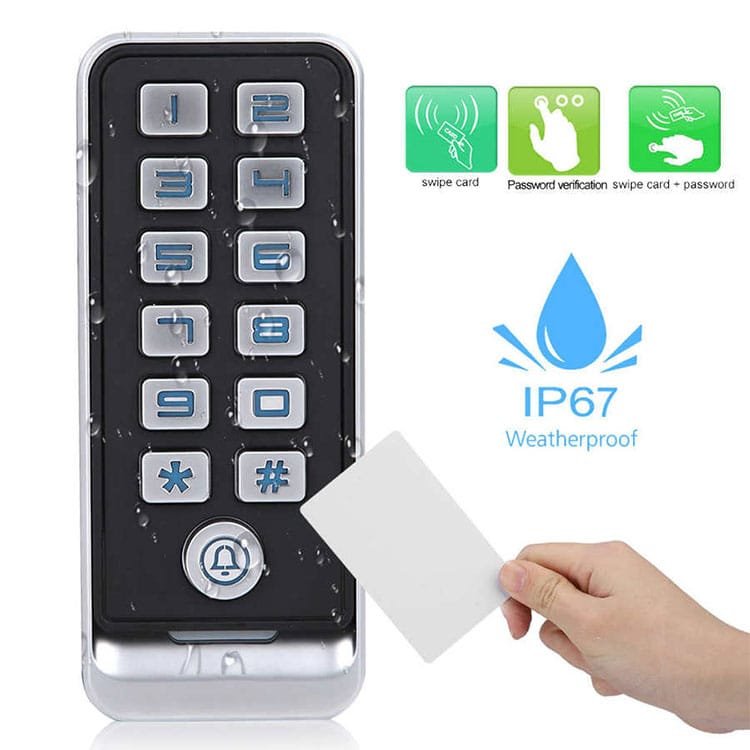

Support three door opening methods: swipe cards,input password and swipe cards
plus input password；
Ultra-low power consumption, independent password
Data Sheet:
Card type :ID Cards
Frequency :125kHz
Working voltage :DC 12V（±5%）
Working current :Less than 200mA
Standby current :Less than 150mA
Sensing distance :0~3cm（effect by cards and work environment）
Working temperature :-20℃~+60℃
Storage temperature :-20℃~+80℃
Working humidity :15% ~ 90%
Storage :5000 users
Protection class :IP65
Electrostatic parameters :Contact 6kv, air 8kv
size :138*58*22.67mm(tolerance±0.3)
Wiring definition
Red: DC 12V, light blue: SEN (door sensor)/LED, orange: AL (alarm), black: GND, gray:
BUT (exit switch)/BEEP, purple: BELL+ (doorbell), brown: BELL- (doorbell ), light green:
AUX+, yellow: NC (normally closed), pink: COM (common), green: WD0/RXD (switched by
5,6 dial), white: WD1/TXD (switched by 5,6 dial) ), blue: NO (normally open)
